Mid-Drive Motor Systems
Three centrally-mounted drive units for direct integration into custom bottom-bracket assemblies Designed for predictable thermal behavior under sustained gradient load
Units in Family
Power Range
Wheel Compatibility
03
250 W — 1000 W
20" — 29"
Specification
Rated Power
Peak Torque
Rated RPM
Reduction Gear Ratio
Voltage
Bottom-Bracket Width
Wheel Size
Net Weight
Protection Rating
Operating Temp
Documentation
Specification

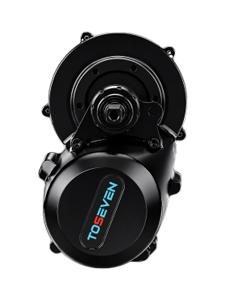

DM01
Rated Power
750W / 1000W
Peak Torque
160 N·m
Rated RPM
160
Reduction Gear Ratio
40.27:1
Voltage
48V / 52V / 60V
Bottom-Bracket Width
68 — 120 mm
Wheel Size
20" — 29"
Net Weight
6.0 kg
Protection Rating
IP65
Operating Temp.
−20°C / +50°C
Specification

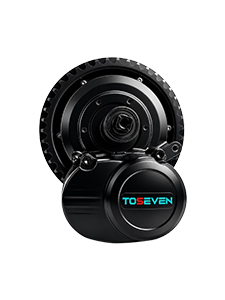

DM02
Rated Power
250W / 350W / 500W
Peak Torque
90 N·m
Rated RPM
100
Reduction Gear Ratio
-
Voltage
36V / 48V
Bottom-Bracket Width
68 — 100 mm
Wheel Size
20" — 29"
Net Weight
3.6–3.9 kg
Protection Rating
IP65
Operating Temp.
−20°C / +50°C
New
Specification

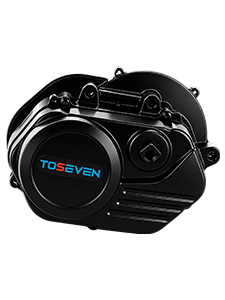

DM03
